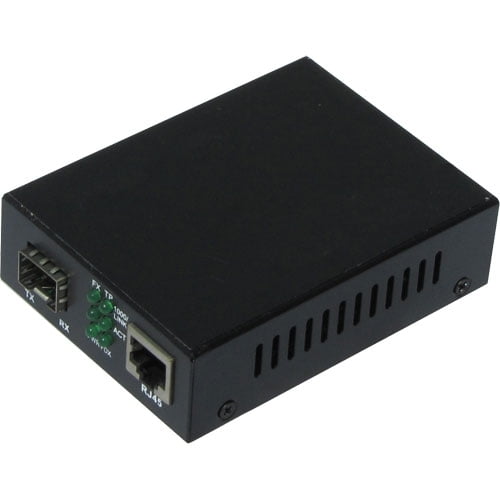

SFP Fiber media Converter to RJ45 Gigabit Media Converter

1-This Gigabit Ethernet media converters comply with IEEE 802.3/ab Gigabit Ethernet standard, support two types of media for network connection such as 10/100/1000Base-T to 1000 Base SX/LX/ZX and connect these two types of segments to operate smoothly.

2-The media converters can be used in 16 slot chassis as plug-in modules. They can transform 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX/ZX (Fiber Gigabit) media and vice versa.

3-The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector, the fiber Gigabit connection supports shortwave (SX) or long wave (LX) laser optic with multi-mode or single-mode SC/FC/ST type connector.

4-This converters will give your Copper Gigabit connection the ability of interface with a fiber connection over a distance up to 80km.

5-10/100/1000 means that the media converters can convert the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side.

6-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation

7-Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode

8-Extends distances ranging from 550m (multi-mode fiber) to 120km(single-mode fiber)

9-Supports auto MDI/MDIX function

10-Status LED for easy monitoring of device status

11-Supports jumbo frame size 9K bytes

12-External power supply

13-Supports independent LFP function

14-FCC Class A & CE approved
