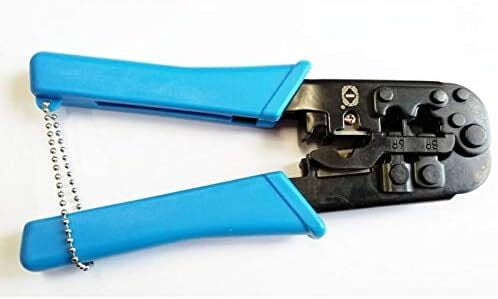

RJ45 Crimping Tool

1-place the single -bladed side of the tool's cutter facing you and cut the modular cable to the desired length .make sure to cut the ends of the cord straight across , not diagonally

2-stripping modular cable (flat cable)

3-2a .insert 4P/6P cable into the two -bladed side of the tool's stripper until it touches the stop guide

4-2b. insert 8P cable into the two -bladed side of the tool's stripper and let it extend a little past the lower cut blade

5-squeeze handles until it stops ,cable must be kept perpendicular and then pull from the tool stripping round cable

6-insert the cable into the round stripping hole , turn the crimper in counter clockwise direction and cable in clockwise at the same time.

7-remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end

8-place modular plug with cable into the tool's holder .be sure the stopped wire is between the tab and gold contacts .squeeze handles until it stops.
