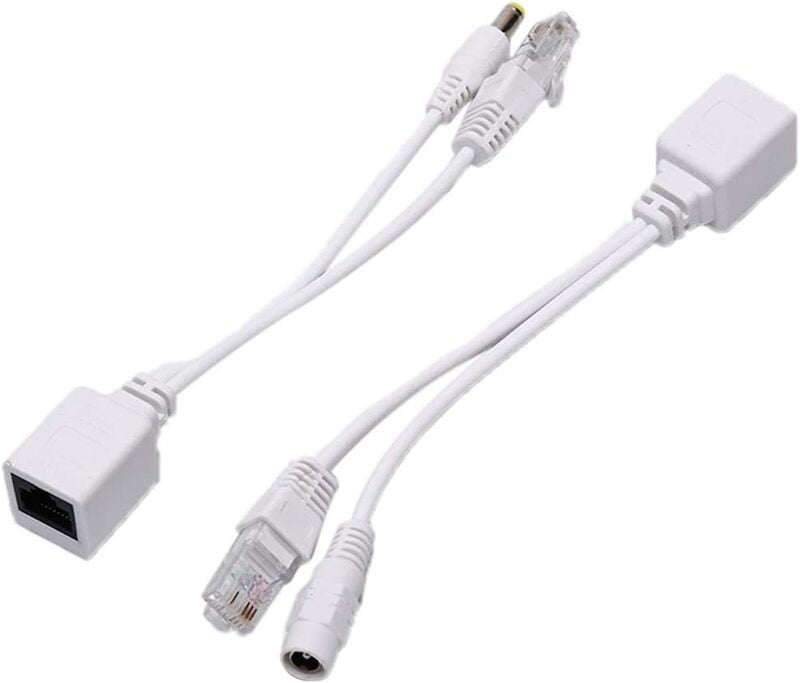

Passive PoE Injector and PoE Splitter Kit

1- ABS plastic and Copper core Wire,Metal for plug.

2-PoE injector and splitter kit with 5.5mm x 2.1 mm DC jack / plug, Dimension: 6.88" x 0.78" x 0.78"(L*W*H).

3-The product are widely used for WLAN, routers, switches, internet telephony, security monitoring etc.

4-Compact design and easy to install,very convenient.Only support 10@Mbps network;Transforms Non PoE devices to PoE enabled;Use with IP security camera, wireless access point and other devices.

5-Can work up to 98.4-164ft (depending on the quality of the cable and the power draw of the device).

6-This kit requires an external power adapter to power on the unit.

7-Passive PoE injectors and PoE splitter kits reduce the cost of powering over a network cable to reduce distance.

8-This product utilizes the characteristics of a wide voltage input of the load device, and all distances are always limited. If your distance is greater than 30 meters, please choose 24V power supply or standard POE power supply

9-If the voltage of the POE switch exceeds 15V, please step down and use it with this splitter, otherwise the camera or other load device may be burned out.

10-Material: PVC + zinc alloy + copper

11-Interface name: RJ45+DC

12-Function: network signal + DC power transmission

13-Support format: network digital signal

14-Compatible video format: network digital signal

15-Maximum Support Pixel : 5 Million Pixels

16-Anti-interference: >60db

17-Impedance: 75 ohms

18-Weight：1.82 oz
