Optic Fiber power Meter With FC,SC Connector

  Package included

1-    1pcs x Cleaver FC-6S    3-[Cleaver] The FC-6S is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. The FC-6 is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.   Dimensions: 63W x 76D x 60H mm , Weight: 272g Without Scrap Collector, Coating Diameters: 0.25 - 0.9mm (Single) 0.25mm (Ribbon),  Cladding Diameter: 0.125mm, Cleave Lengths: 9 - 16mm (Single Fiber - 0.25mm Coating) ;10 - 16mm (Single Fiber - 0.9mm Coating) ;10mm (Ribbon - Up to 12-C) , Typical Cleave Angle: 0.5 Degrees,  Typical Blade Life: 36,000 Fiber Cleaves,  Number of Steps for Cleave

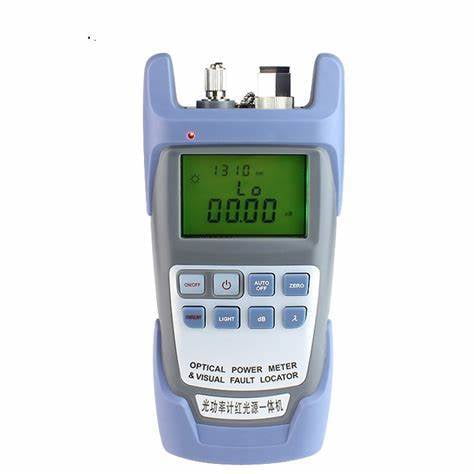

 2-1pcs x Optical fiber power meter      (( [OPM] can measure 7 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/1650nm , test range: -70dBm~+6dBm,Support lighting,Support automatic shutdown,Support backlight selection, Support wavelenghth memory function,Support user calibration. ,  Calibration Wavelength: 800~1700nm

, Optical Connector:2.5mm FC/SC/ST universal interface,  Detector Type: InGaAs , Measurement Range: -70 ~ +10dBm, Accuracy: ±0.05dB,  Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625，1650 nm ,  Display resolution:mW:0.1% ,dBm:0.01dBm 2.5mm FC/SC/ST universal interface,Support simultaneous disply of linear mW and non-linear index dBm. With SC/UPC(Male) to LC/UPC(Female) Adapter.)

3- 1pcs x 30mW Visual Fault Locator (not include battery)    (( 2-[VFL] It is easily to accurately detect and locate fiber breaks, poor connections, bending or cracking. The principle is detector emit a 650nm bright light to tracing, breaks or faults points in the fiber will refract the light. 30mW visual fault locator with battery output strong red light goes 20-30 kilomters far, high effective power circuits allows for stable power.Easy to change the ceramic core. It will help to extend the use of time.[VFL] The 2.5mm universal connector of the detector is compatibly designed for ST, SC, FC interferes both in circle and square shape of different fiber optic cables.Test for both single-mode and multi-mode cables. And have two mode: always light and flicker.   Universal connector fit Interface FC ST SC,  650nm bright light 10Mw (Transmission distance 5-12km),  Big Power, signal strength, light enough,  Metal case,not plastic case,  Small size,easy to field test , Easy identification of fiber break,bend, you can protect the fiber layer , To-end fiber identification,  Complete mechanical connecting point detection and optimization.))

4-1pcs x SC/UPC(Male) to LC/UPC(Female) Adapter

5-1pcs x Fiber Optic Cutter

6-1pcs x The guide bar

7-1pcs x Miller clamp

8-1pcs x covered wire stripping device

9-1pcs x Alcohol bottle

10-1pcs x black bag
