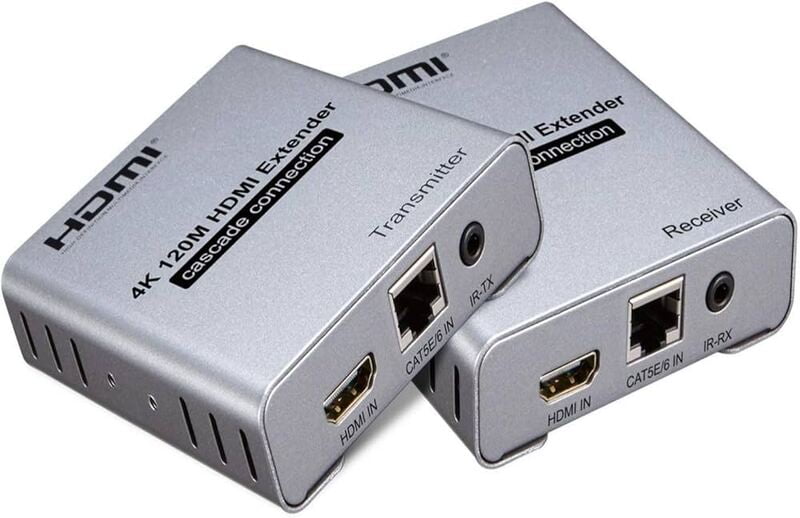

HDMI Extender Over LAN Routers Switchers
EGP1,330.00 EGP1,710.00
4k HDMI Extender Over LAN Routers Switchers Ethernet Network 120M RJ45 CAT5 CAT6-Single Source from 1080P Full HD STB DVD PS3 - w DLP LCD LED Supports TCP IP by Ethernet DC 5V 1A
Choose Quantity
Product Details
1-Length of CAT-5E/6 cable between RX and TX........ Up to 60 meters
2-HDMI Input.......1080p/1080i720p/576p/576i/480p/480i
3-HDMI Output...1080p/1080i/720p/576p/576i/480p/480i
4-Max bandwidth.........150MHz
5-Max baud rate .........4.5Gbps
6-Input video signal ......0.5~1.5Volts p-p
7-Output DDC signal.........5Volts p-p (TTL)
8-Input HDMI cable distance.......................≤10m AWG26 HDMI standard cable
9-Output HDMI cable distance.....................≤15m AWG26 HDMI standard cable
10-TX max working current .........300mA
11-RX max working current .....300mA
12-Power adapter format...........Input:AC (50HZ,60HZ)100V-240V;
13-Output: DC5V/1A Operating temperature range..........(-15 to +45C)
14-Operating humidity range.............5 to 90%RH (No Condensation)
15-Dimension (LxWx H).....................94x84x24(mm)
TX weight .....220g
