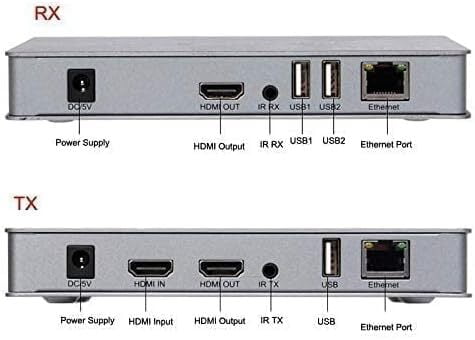

4K 120M HDMI KVM Extender Transmitter Receiver

1-HDMI KVM Over IP Extenders, transmits 120 meters from your HDMI or DVI-D source to HD display by single CAT6/7 cable. Supports 1pcs of SENDER to 4pcs of RECEIVER (over Switch).

2-Extremely Easy Installation and Operation. You can control STB or Blue-Ray DVD at receiving site by remote control. there are 2 USB port, its a great convenience for long distance controlled by keyboard and mouse.

3-Supports HDCP1.1/1.2 + Full HD 1080p+NEC+2x 5V/2A Power Supply (UK standard)

The design of pure hardware, plug and play, no need for additional software. Just connect it correctly, it will show the same high definition signal.

4-This HDMI KVM Over IP Extender is based on TCP/IP standard. It transmits max 120 meters from your HDMI or DVI-D source to HD display by single CAT5e/6 cable. At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

5- The Extender uses single cat6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

6-Support HDMI 1.4/HDCP1.4.

7-Support local loop-out.

8-Support 120m long distance transmission.

9-Low power consumption, low temperature and high safety.

10-Both the TX and RX support 3.5MM left and right audio output.

11-Support IR control.

12-Support USB mouse and keyboard extension.

13-Length of CAT5e/CAT6 cable between Rx and TX 120 meters.

14-HDMI Input 4k/1080p/720p/576p/576i/480p/480i.

15-HDMI Output 4k/1080p/720p/576p/576i/480p/480i.

16-Max bandwidth 340MHz

17-Input video signal 0.5~1.5Volts p-p

18-Output DDC signal 5Volts p-p (TTL)

19-Input HDMI cable distance ≤10m AWG26 HDMI standard cable

20-Output HDMI cable distance ≤10m AWG26 HDMI standard cable

21-TX Max working current 350mA

22-RX Max working current 200mA

23-Power adapter format Input: AC (50HZ, 60HZ) 100V-240V.

24-Output: DC5V/1A

25-Operating Temperature range (-15 to +55℃)

26-Operating Humidity range 5 to 90%RH (No Condensation)
